Description

The Votronic Fresh Water Tank Display have been designed for precise level measuring, and they are suitable for any tank material and tank size.  The units vary in the arrangement of the three-colour display light-emitting diodes at the range ends and in the symbols imprinted on the front panel.

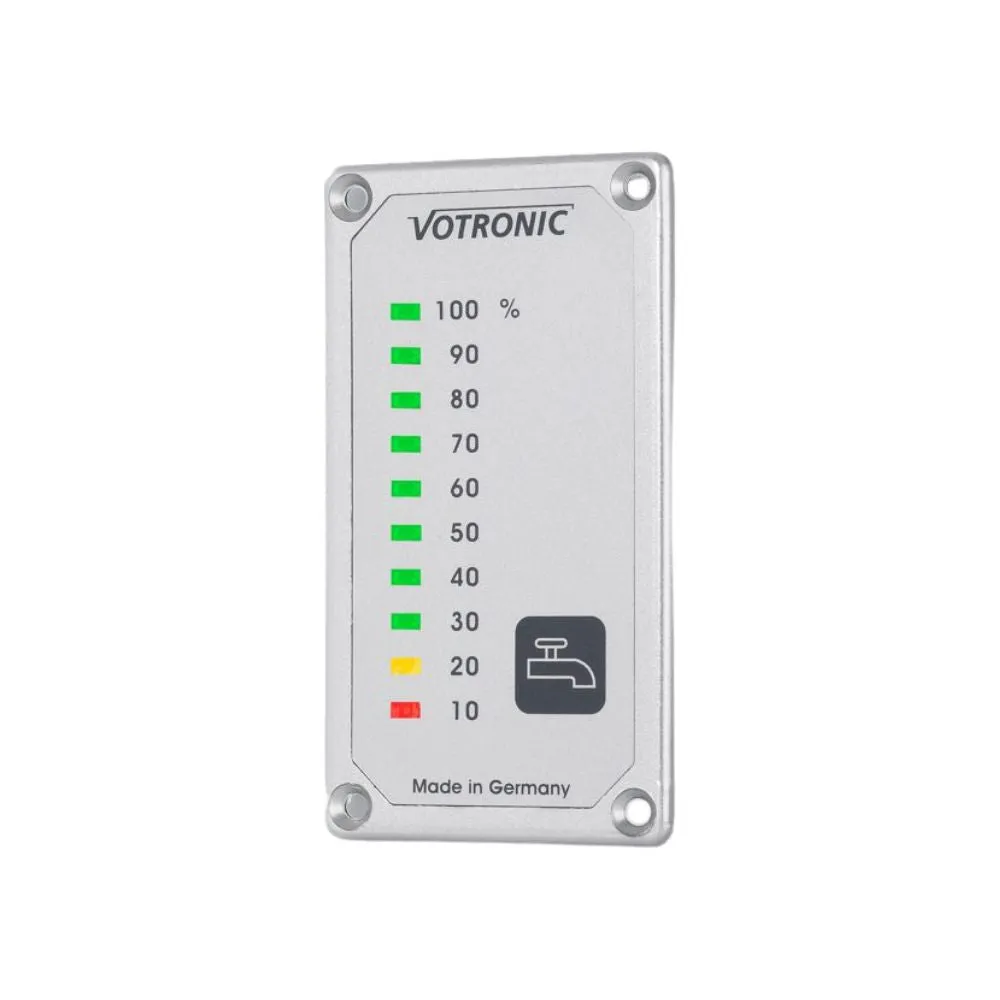

Votronic Fresh Water Tank levels are represented in the form of a clearly arranged luminous bar with 10 light-emitting diodes in three colours, allowing the tank levels to be read conveniently at a glance.  The displays are working continuously since intermediate results are displayed in variable brightness.  Thus, tendencies can also be recognised at once.  During refuelling and emptying of the tanks, the continuously raising or dropping display shows a driect image of the instantaneous level, allowing complete control of the procedure.  Also, the continuous operation of the display contributes to this control.  At the touch of a button, the display can be switched on or off, or it is switched off automatically after approximately 10 minutes.

The display units are executed as panel versions matching the Votronic modular system.  The appearance (identical height 85mm) is adapted to the other Votronic display units.  Of course it is possible to retrofit a single display in the vehicle.  The small dimensions of the front panel and the particularly small mounting depth of only 15mm allow an installation at almost any location.  Thus, storage space, which is located behind, can be used further.

The units are protected against reverse battery and overload and can be easily connected to the unit rear by means of terminal screws.  Installation and operating mannual, as well as drilling jig for the furniture cutout, are included in the standard delivery scope.  These displays are suitable for 12V and 24V operation.

Specification

Depending on the requirements, one the following Votronic measuring sensor can be used

• Tank Electrode 12-24 K
• Tank Electrode 15-50 K
• Tank Electrode 20 K-WC
• Tank Sensor FL
• Tank Sensor 30-110 K-FL

Assigning two tanks to the display units (such as an inside/outside tank, summer/winter operation, auxiliary tank, etc.) is possible.  Separate switches 2xUM with push-on connection are suitable for switching, such as the Switch Panel 16 A S, Art,-Nr. 1289 or Switch Panel 2x16 A S, Art.-Nr 1291

Former measuring sensors, tank transmitter sets, and probes work according to the conductive measuring method (Conductivity).  Due to the 7-stage measurement, they are no longer suitable for continuous operation at the tank displays.

Inclusions: Fastening screws, manual, drilling jig
