Faber Cylinders are appreciated worldwide by scuba divers. Manufactured in Italy, these high quality stainless steel cylinders are top of the range.
All complete cylinders come with boot, and air sticker. The valve options are swappable. All cylinders come Inspected and approved for filling by the consumer. Cylinders need to be hydro tested yearly

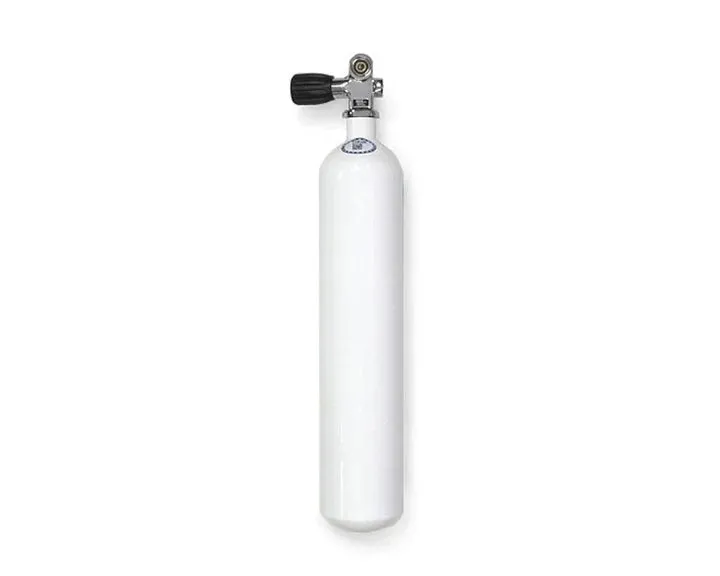

The Faber Cylinder are manufactured with extremely high quality steel made to international standards. Faber cylinders display a unique combination of size, weight and buoyancy. This tank is 232 bar, with 3 litre (25 cubic foot) capacity and 11mm (3.9 inch) diameter.
This tank is probably the second most common steel cylinder used on a closed circuit rebreather (CCR), also known as the Faber FX23.

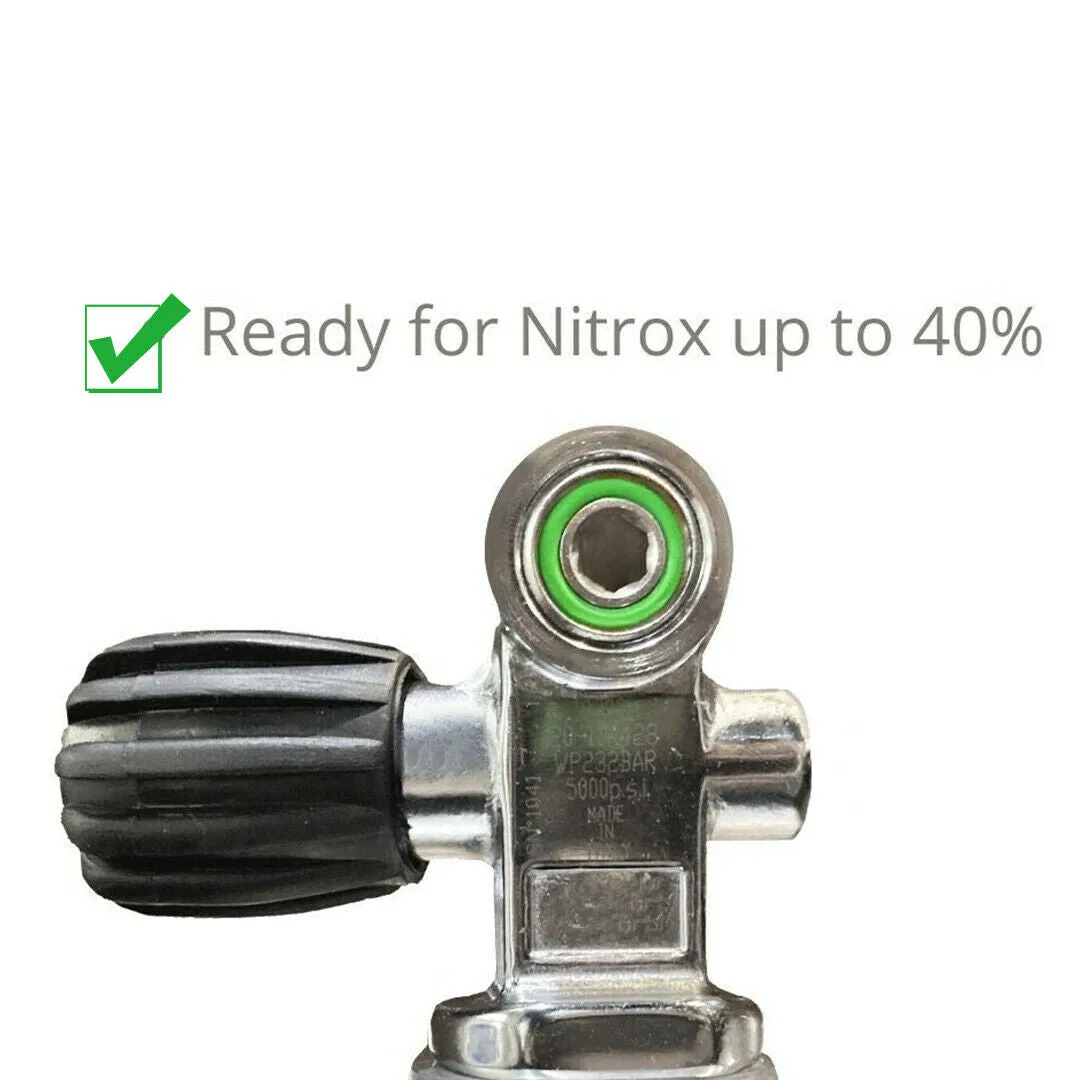

Tank is supplied with DIN/Yoke convertible valve as standard. They are strong and reliable, made from top quality materials. The inner air passages were carefully studied in the design so as to guarantee top performance. The valve design ensures an excellent grip, facilitating opening and closing of the tank. The valve regulator connection incorporates a threaded insert, which means it can equally be used for both Yoke or DIN connection.
Specifications
-
Fill pressure: 232 bar (3365 psi)
-
Test pressure: 348 bar (5047 psi)
-
Standard: BS 5045 Pt 1
-
Material: 34CRMO4 Chromium Molybdenum Alloy Steel
-
Manufacturing Process: Cold deep drawing from steel plate
-
External Primary Finish: Hot Zinc sprayed, layer thickness 60/70 microns
-
External Final Finish: 2 part polyurethane white paint sprayed and air dried
-
Internal Finish: Chemically treated with Ferrous Phosphate
-
Neck Thread: 3/4 inch NPSM
